Product Description
[Weaving Range]

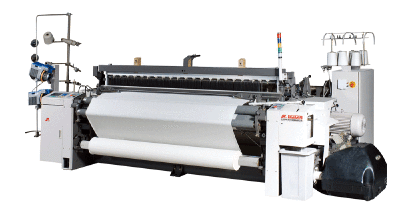

This model air jet loom can weave various nature, manmade, synthetic fiber and blended spinning fiber.
[MORE NEW FUNCTION THAN RFJA10]
New style electric control system
Creatively designed new style positive let-off system
Equipped with low vibrant balanced beating system
Let-off system with double back roller
Adopts super low-power electro-magnetic valve
Weaving Navigation System.
[Characteristic]
1. New electronic control system
Weaving Navigation System can scoutthe working situation during loom running, can guide the loom to chose the best weaving technology as per all the situation; Can automatically set the best weaving parameters as per loom condition and fabric specifications; Further improved auto-set system and weft brake system which prevent stop mark.
2. New type positive let-off motion
To ensure high-speed running we designed new type positive let-off motion for JA20, the let-off motion is fitted on outside of side boards, so eccentricity can be adjusted easily.
3. Low vibrant balanced beating system
Box-board on both sides and front beam are designed with high rigid structures, it is with good anti-vibration and durable even weaving heavy fabrics at high speed. General y equipment of supporter on the rocking shaft and rocking balancer can realize smooth and strong beating at high speed for perfect fabric.
4. Flexibility for high speed
Adopts high rigid frame structure, big diameter beam gear and positive let-off driving beam with bath lubrication, which make loom suit for the high density fabric at high speed. The flange diameter is up to 1100mm if necessary.
5. Double back roller
Let-off motion adopts double back roller which keep tension constant and fit for weaving various heavy or light fabrics.
6. Low-power weft insertion
The sensor of new electro-magnetic valve is higher, makes air pressure stable while jetting accurately at ultra high-speed. Valve is connected with front-beam and air groove. Which shortens the distance from valve to nozzle, improve the efficiency.
- Place of Origin: china
- Brand Name: rifa
- Model Number: RFJA20
| Item | Specification | Option |
| Reed width | 190, 210, 230, 250, 280, 340, 360, 390cm | |
| Effective width: reed width - 0 ~ 60cm (150~250cm) Reed width - 0 ~ 80cm (280cm – 360cm) | ||
| Weaving range | Spun: Ne100 ~ Ne5 | |
| Filament: 50D ~ 900D | ||
| Weft selection | 2-color, 4-color at will | |
| Drive | It directly controls positioning stop though electromagnetic brake device | |
| Direct start of rush-start motor 3.0kw( Cam shedding )3.7Kw (dobby shedding) 6.5Kw (jacquard shedding) | ||
| Push-button operation with both hands | ||
| Weft insertion | Main and sub-nozzles combined system | Stretch nozzle |
| Profile reed | ABS | |
| Auxiliary main nozzle | ||
| Shedding | Negative cam shedding: shaft number up to 8 | |
| Crank plain shedding: shaft number: 4 or 6 | ||
| Positive cam shedding: shaft number up to 8 | ||
| Dobby shedding: shaft number up to 16 | ||
| Electronic jacquard | ||
| Let-off | Electronic let-off (ELO), with kickback function | |
| Single beam (reed width less than 250cm) | Twin beam | |
| Positive easing | ||
| Beam flange dia. 800mm | 914mm, 1000mm | |
| Take-up | Electronic take-up | Mechanical take-up |
| Pick density: 25 ~ 205 picks / inch (mechanical take-up), 25 ~ 300 picks / inch (electronic take-up) | ||
| Max. roller dia. 600mm (Cam, dobby, jacquard shedding) 520mm (crank shedding) | ||
| Beating | Crank type beating, multiple sley sword beating | |
| 4 linkages (reed width up to 230cm), 6 linkage (reed width 250cm or more ) | ||
| Measuring/storing | Vibration mode pooling system | FDP Free Drum Pooling |
| Filling supply stand | Floor mounted for 4 packages (2 colors); floor mounted for 8 packages (4 colors) | |
| Selvage | Planetary gear motion | |
| Waste filling removal | Catch cord type (3-roll type), catch cord type (gear type) | |
| Cutter | Mechanical cutter | |
| lubrication | Oil bath system for main driving parts, centralized lubrication (Manual grease) | Central oil filling system |
| Auto-stop motion | Weft: reflective weft feeler | |
| Warp: electric 6-row contact bar system | ||
| Others stop motion leno selvage and catch on Navi-Borad | ||
| Stop cause indication: indication by message on Navi-Board | ||
| Auto-Matical | Control: with Fboard (data setting, automatic control, monitoring, self-diagnosis function) | |
| Pick finding: APF Automatic pick finder | ||
| Low inching by inverter (forward, reverse) | ||
| Monitor output terminal | ||
| Memory card system | ||
| Automatic jetting control |
