Product Description

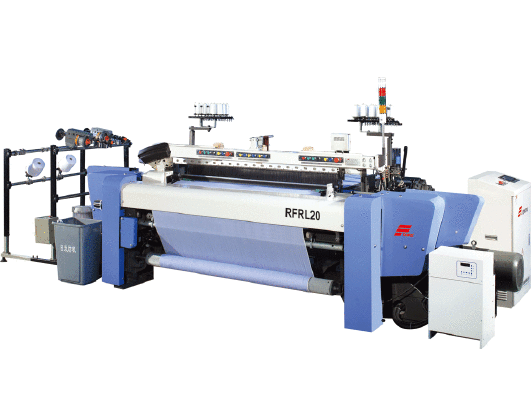

RFRL20 high speed rapier loom is a model developed from the existing advanced rapier loom technology of Shandong Rifa Textile Machinery Co., Ltd. It's designed for the advantage of power saving, high speed and efficiency, low vibration and noise. RFRL20 adopts super direct motor with function of stepless speed change. More than 15% power can be saved than normal motor. It shows great performance on high-speed, low vibration and power saving. RFRL20 high speed rapier loom is one of the best choices for economic weaving.
>>Wide weaving versatility, high efficient production
>>Advanced technology, especial structure
>>Mechanical & electrical integration, Advanced digital automatic control
>>Excellent performance, perfect production.
>>Easy operation and maintenance.
[High-efficiency Driving & stepless Speed Change]
RFRL20 adopts switch reluctance motor, It has stable performance of powerful starting torque, quick break, power saving. The weaving speed can be changed at will to fit different yarn and fabric weaving.
[pecial Design & Flexible Weaving]
The main mechanism of RFRL20 such as shedding, insertion, let-off and take-up is designed especially for wide weaving versatility. It's suitable to weave various fabrics such as denim, grey cloth, synthetic filament, upholster fabric, industrial & percolation fabric, filter cloth, linen, glass fiber etc.
[recision Manufactured & low noise]
Newly designed by 3D designing software, RFRL20 have the optimal and stable structure of frame connection, let-off and take-up etc. The beating motion is stable and lightsome, The precisely components make each motion balance and low-noise.
The super motor can directly drive the loom motion of inching and pick finding etc. Applying automatic control technology completely make the machine have multi-autoimmunization functions: Cloth fell auto-compensation, auto pick-finding, tension auto adjustment. Network monitoring, fault self-diagnosis, ensures fabrics having perfect quality
Achieve overall digital control through multi-nucleus and multi-bus control technology. Advanced CPU can manage and scout all the external equipments (electronic dobby /Jacquard ) through input /output interface, all the parameters/data can be restored and transferred easily through USB. The control system can quickly collect and scout the loom situation, and make automatic control and adjustment in time, and show the error diagnoses.
Humanized and friendly interface for customers make operation easy and quick. Adopts big LCD screen display which can make intercommunication and instant setting and adjusting various parameters and make technological programmer. Applying equipment for quick style changes make adjustment and operation easier, reduced maintenance time maximally.
- Place of Origin: china
- Brand Name: rifa
- Model Number: RFRL20
Item | Main Technical Parameter |
Reed width(cm ) | Nominal: 190, 210.230.260.280. |
Working reed width: reduce 0~40cm from nominal width | |
Yarn range | Cotton and man-made fiber yarn: 500tex(1.2Ne)~5tex (120Ne) |
Slub & worsted: 680tex(1.5Nm)~0tex(100Nm) | |
Filament: 10dte(9Td)~1650dte(1500Td) | |
Weaving speed | Working speed: 380~450 rpm |
Insertion rate: 1200m/min | |
Weft | Weft selector: 4~8 colors high speed electronic selector |
Accumulator: FPD electronic accumulator | |
Weft cutter: mechanical | |
Power | Power: super direct motor |
Shedding | Electronic dobby (20 shafts max) or electronic jacquard |
Beating | Conjugated cams with double drive on both sides |
Insertion | Driven by conjugated cams |
Let-off | Continuous alternative current servo electronic let-off |
Flange dia: φ 800mm. φ 1000mm | |
Take-up | Continuous alternative current servo electronic take-up |
Cloth roller dia: φ 550mm | |
Pick density: 5~120 picks /cm | |
Selvage | Selvage: mechanical |
Selvage cutter: mechanical | |
Temple: LH & RH independent temples | |
Lubrication | Bathoil & pressure oil |
Stop motion | Warp yarn: 6 line electronic contact stop motion |
Weft yarn: electronic high-sensitive piezoelectricity inspection | |
Stop display: the panel shows the reason, function 4-color stop lights showing | |
Automatic | Automatic point stop/auto pick-finding/cloth-fell auto-compensation/auto warp tension adjustment/auto inspection/auto reposition/ auto fault showing. |
E. controlling | Controlling: functional CPU controlling system can control, scout, auto diagnosing, information showing. Display: big LCD screen showing bidirectional communication, button operation, instant adjustment/parameter setting programming. |
